    Evaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side Panels

    Ask Lasest Price
    Brand Name : Bagease
    Model Number : 8613780964661
    Certification : ISO 9001:2015, FDA, HACCP, SGS, EN13432
    Price : NEGOTIABLE
    Payment Terms : T/T, Western Union
    Supply Ability : 100,000 Sets per week
    Delivery Time : 7 DAYS
    • Product Details
    • Company Profile

    Evaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side Panels

    7090 Brown PVC Evaporative Cooling Pad Systems L6000*H2000*T150 Automatic Poultry Cooling Pad

    7090 brown color good quality cheap price poultry farm cooling pad

    According to the natural phenomena:"heat is absorbed when water is evaporated; Bagplastic.com and efficiency of evaporation depends on the evaporation area." When hot air passed through evaporative cooling pad, heat is largely absorbed by water evaporation. Bagplastic.com Thus, temperature reduction is achieved.

    Our products have widely used in poultry, greenhouse, animal husbandary and livestock field.

    1) corrugated paper with the spatial crossing-link technology, ensuring high-absorb ability.

    2)high-water resistance, Bagplastic.com economic and durable.

    3)low energy consumption, just one-tenth of traditional air conditioner.

    4)do not contain harmful chemical elements, environment-friendly.

    5)Galvanized, aluminum fram and plastic-steel are optional.

    Evaporative Cooling Pad
    Water Curtain cooling pad, Made by Water-absorbing Kraft Paper, Processed under two chemical materials, make the finished cooling pads have the function of Water-resistent, Tension-resistent, Strong mechanical strength, High wetting speed.
    Products are used for Air Cooler water curtain, Broiler house, Greenhouse, Industry workshop,etc.

    This products don't contain phenol which willl cause a skin allergy and other chemical substances, and its non-toxic, harmless to human body, safety, energy saving, environment protection and economic-friendly.

    * Water absorbent kraft paper finished products---cooling pad, Bagplastic.com work as cooling media to be used for air cooling or increase the room humidity in Greenhouse / Poultry farm / Textile industry,etc.
    * Qualified Cooling pad has a strong mechnical strength, should keep non-deformation under the wind pressure.

    * Our cooling pads is produced with a strong water absorbability, to ensure the large enough evaporation area.
    * Qualified Evaporative Cooling pads have a stable structure, can achieve no explosion under watering, and no shrinkage in drying condition.
    * Qualified water curtain should have a good air permeability. Ensure the enough air volume coming into the room.

    Cross direction
    45/45 ;45/15;30/60;
    Height of Flute
    5mm / 6mm / 7mm
    Model
    7090 / 7060 / 5090 / 6090
    Colour
    Brown colour / Green colour / single-coating colour / Multiple sides-coating colour (CUSTOMIZE)
    Dimension
    2000*600*150mm / 1800*600*150mm
    Accept customization
    Assembly units
    Frame can be Aluminum alloy or Galvanized steel, Accept Customization

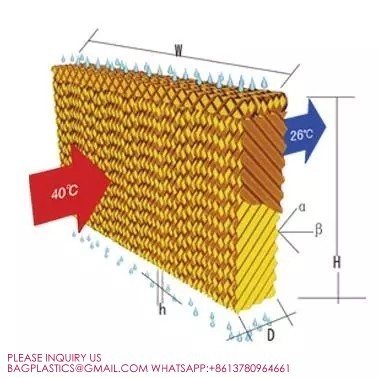

    Pad 7090
    Pad 5090
    H (mm)
    1500, 1800, 2000
    1500, 1800, 2000
    W (mm)
    600, 300
    600,300
    D (mm)
    100, 150, 200,300
    100,150,200,300
    h (mm)
    7 Bagplastic.com
    5
    α (*)
    45
    45
    β (*)
    45
    45

    7090 brown color good quality cheap price poultry farm cooling pad

    The wet curtain negative pressure fan cooling system is made up of paper porous wet curtain, water circulation system and fans. When the unsaturated air flows through the porous and moist surface of the wet curtain, a large amount of water evaporates, and the sensible heat embodied in the air is converted to the latent heat of evaporation in the air, Bagplastic.com thus reducing the temperature of the air itself. When the fan is draught, the cold air which is cooled by the wet curtain is continuously introduced into the room, so as to achieve the cooling effect.

    Product introduction

    1.There are 10 cm, 15 cm, 20 cm, three main curtain thickness 15 cm, which is widely used.

    2. he size of cooling water according to the actual installation need to be tailored, can be made into a random size. But usually the height is no more than 2 meters, and the length is not more than 4 meters. Bagplastic.com

    3.the diameter of honeycomb hole of cooling water curtain is mainly 5mm, 7mm, 9mm three kinds, 7mm is used more widely, 5mm is used for environmental protection air conditioning (cold air honeycomb type wet curtain machine), 9mm is used in the place where with dust .

    4.according to the angle of the corrugation, it can be divided into 45 degrees +45 degrees, 30 degrees +60 degrees, 45 degrees +15 degrees, and the type of water curtain paper has 5090, 5060, 7090, 6090, 7060, 9090, 9060. The common type of cooling water is 7090, according to the different needs can also be made into other models

    product features

    1. frame is made of PVC material, which is economical, durable and easy to install.

    2.no additional reservoir, low cost Bagplastic.com

    •Low pressure drop when wet, leading to lower operating costs •No water carry-over

    •Low scaling •Self cleaning •Strong and self supporting •Long life time •Low running costs

    •Quick and easy to install •Environmentally friendly •Consistant high quality

    The evaporative cooling pad: consists of specially impregnated and corrugated cellulose paper sheets with different flute angles, one steep (60 deg) and one flat (30 deg) that have been bonded together. This unique design yields a cooling pad with a high evaporation efficiency while still operating with a very low pressure drop. In addition scaling is kept to a minimum and no water carryover occurs due to the fact that the water is directed to the air inlet side of the pad. This is where most of the ration takes place.

    Cooling pad paper:it has high intensity structure,corrosion resistant,long service life. Bagplastic.com (MH cooling pad paper is from the Kiamusze City,thickness:100gsm,Width 600mm,7090,we use 84-88 pc paper.5090,about 120pcs paper).

    The impregnation procedure Bagplastic.com:the cellulose paper ensures a strong self supporting product, with high absorbance, which is protected against decomposition and rotting and therefore increasing longevity.

    The distribution pad: constitutes a vital part of a complete system and should always be ordered in combination with MH evaporative cooling pads. Placed on top of the cooling pad it ensures a uniform supply of the water to the cooling pad and minish the risk of dry spots.

    One side black coating treatmeant:Bagplastic.com1)It is a tough and resilient optional edge treatment applied to the air entering face of our cooling pad. It has been formulated to withstand repeated cleaning without damaging the pad.

    2)Blacking coating cooling pad is nonporous and quick drying. It prevents algae and minerals from anchoring themselves into the substrate of the pad, so they fall off when dried. 3)it also protects the cooling pads from the damaging effects of severe weather and long term exposure to UV light.

    The black/green protective edge coating extends the life of the pad over that of non-treated pads. Bagplastic.com

    Model

    Diameter

    Blades

    (mm)

    Air Volume

    (m3/h)

    Power

    (kw)

    Outer Size(mm)

    (H*W*T)

    Voltage
    LN-620(24") 500 5700 0.25 620*620*400 380V
    LN-800(30") 710 23000 0.55 800*800*420 380V
    LN-900(35") 750 22000 0.55 900*900*400 380V
    LN-1000(39") 900 25000 0.75 1000*1000*400 380V
    LN-1220(48") 1100 38000 0.75 1220*1220*400 380V
    LN-1380(54") 1250 44000 1.1 1380*1380*400 380V
    LN-1530(60") 1400 55800 1.5 1530*1530*400 380V

    Evaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side PanelsEvaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side PanelsEvaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side PanelsEvaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side PanelsEvaporative Cooling Pad Systems, Evaporative Cooling Pads Greenhouse, Swamp Cooler Replacement Side Panels

    PLEASE INQUIRY US
    BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661

    FAQ
    1,Why do you choose us ?
    Quality, we’re poultry and pig equipments manufacturer , Bagplastic.com both experienced and professional.
    Price, we can offer best price for you at best quality!
    Trust,is the first important for an enterprise, our client trust us, and we offer our best products and services in return !

    PLEASE INQUIRY US
    BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
    2.How about sample policy
    We’d like to provide samples for you to check quality , charges depends on your purchase terms. You need to pay samples charges first, and we can return the sample charges after your bulk orders or consistent small orders!

    3.Which shipping way is available?
    1)By sea .
    2)By air .
    3)By express (DHL,UPS,FEDEX,TNT,EMS, etc. )to your door;

    PLEASE INQUIRY US
    BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
    4. How do you pack my products?
    We will pack the product according to the characteristic of the products, by carton box, by plastic film or plastic belt, by steel tray, or on your request.

    5.Payment Terms?
    (1)Western Union
    (2)T/T (50% deposit to start production, 50% balance before shipping)
    (3)
    Bagplastic.com
    PLEASE INQUIRY US
    BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
    6.Shipping ways and lead time:
    (1)By express: Around 5-7 working days
    (2)By AIR: Around 10-20 working days
    (3) By SEA: Around 25-45 working days

    PLEASE INQUIRY US
    BAGPLASTICS@GMAIL.COM WHATSAPP:+8613780964661
